Fog Generation Device for Model and Small Object Photography "USB-Powered Mist Generation Module"
The "USB-Powered Mist Generation Module" is a device that uses ultrasonic waves to create a fine mist by vibrating water.
The mist particles created by the ultrasonic waves are extremely fine, measuring just a few microns, making it suitable for use as a simple smoke or fog, particularly effective during small object photography.
Unlike typical smoke machines, this device does not use a heat source to generate fog, making it compact and highly safe. It can be easily used near flammable objects or materials that are sensitive to heat.
Since it uses water instead of a special liquid for spraying, there are no concerns about running costs.
It also minimizes any impact on the throat or indoor air quality.
The transducer, which is responsible for mist generation, is small enough to be integrated into models or dioramas.
With USB Type-C power supply, this innovative photography accessory is convenient and easy to use.
- Create emotional expressions in model photography!
Product Features:
A compact and easy-to-use fog machine that can even operate on a mobile battery!
Compared to traditional large fog machines, this mist generation module is small and user-friendly.
Simply wet the water absorption core with water, connect it to a USB power source like an AC adapter or mobile battery, and watch it puff out mist!
It can be utilized as an easy fog machine that allows you to quickly bring your photography ideas to life.
Safe and easy to use with water via ultrasonic technology!
The mist generation module does not require any special liquids!
Since it sprays water using ultrasonic vibrations, it is safe for those with sensitive noses or throats who have struggled with traditional smoke.
Without a heat source, it can be used without worry near flammable objects.
Increased versatility with two methods of application
There are two methods for mist dispersion: using the water absorption core and using just the transducer.

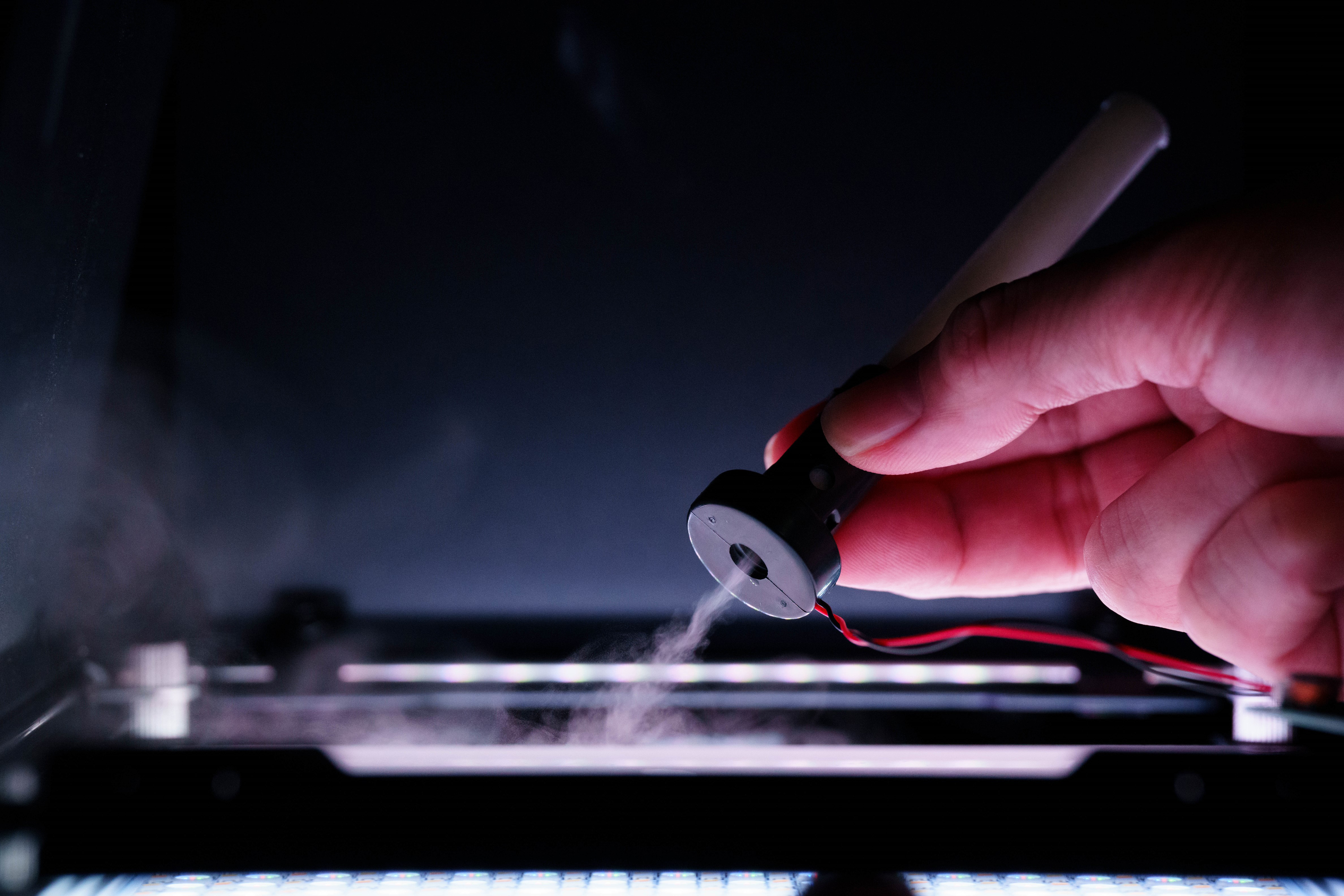

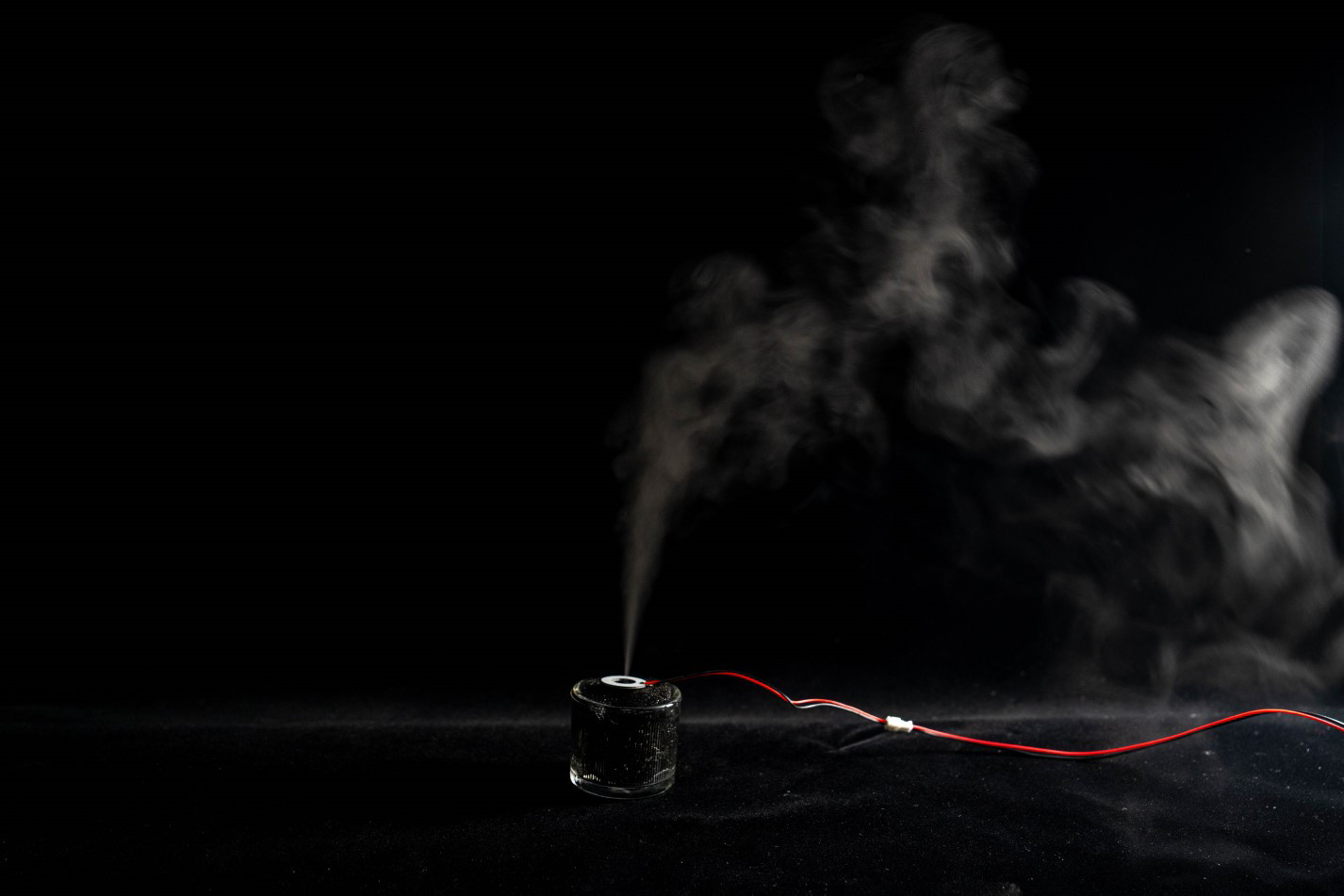

- When using only the ultrasonic transducer:
Mist will be generated when placed on a water-soaked sponge or similar item.

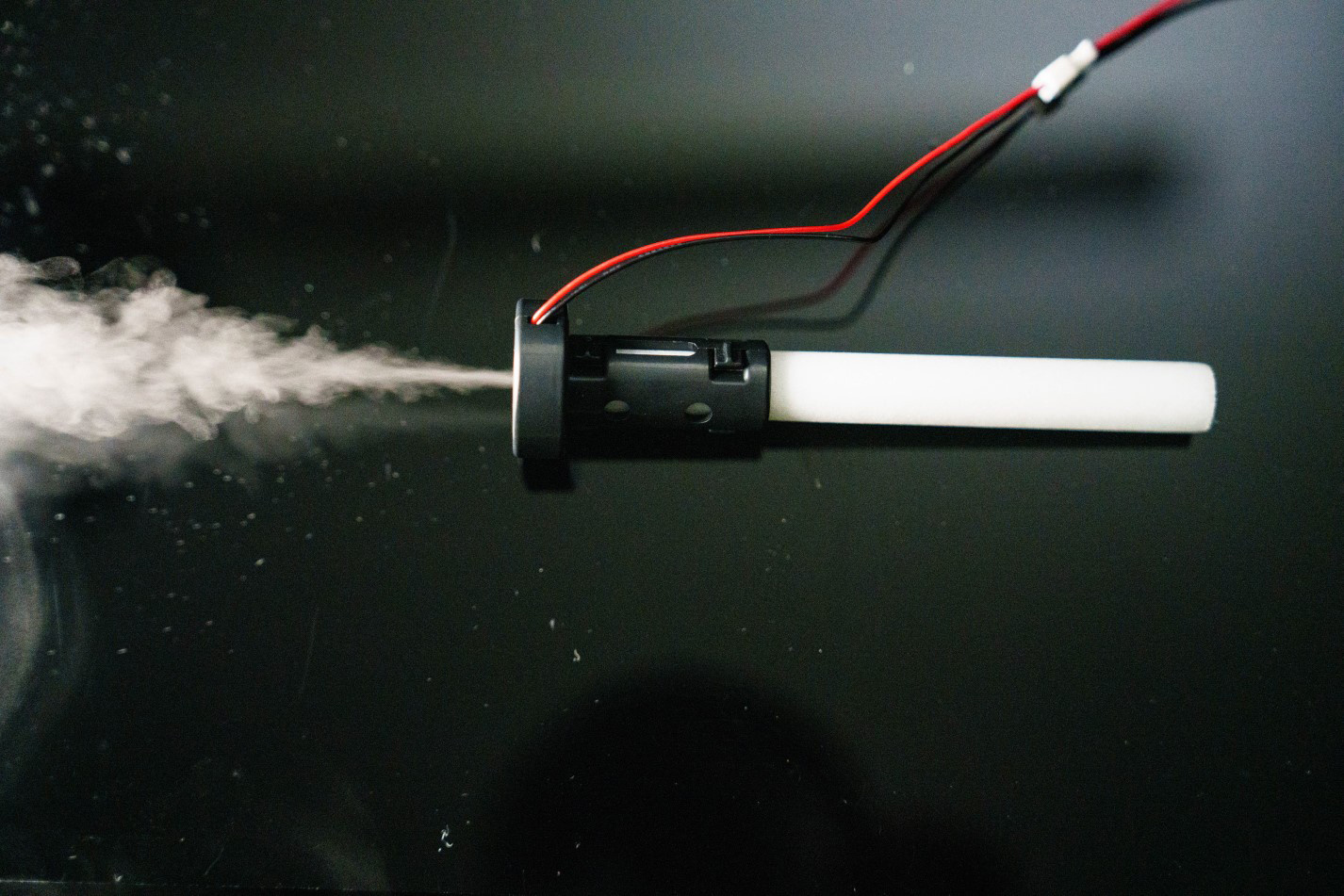

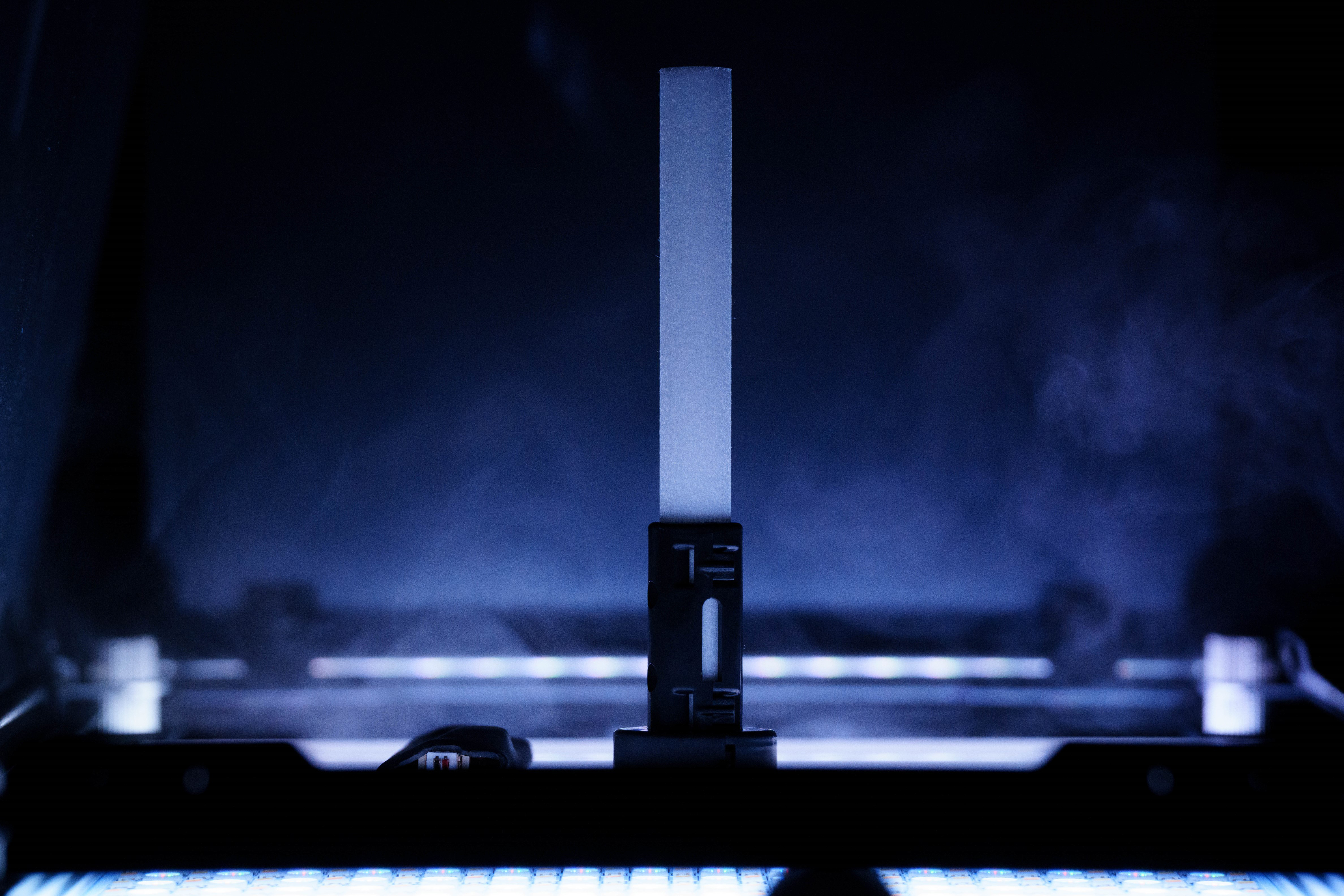

- When using the water absorption core:
It releases mist for about 15 minutes per water fill.

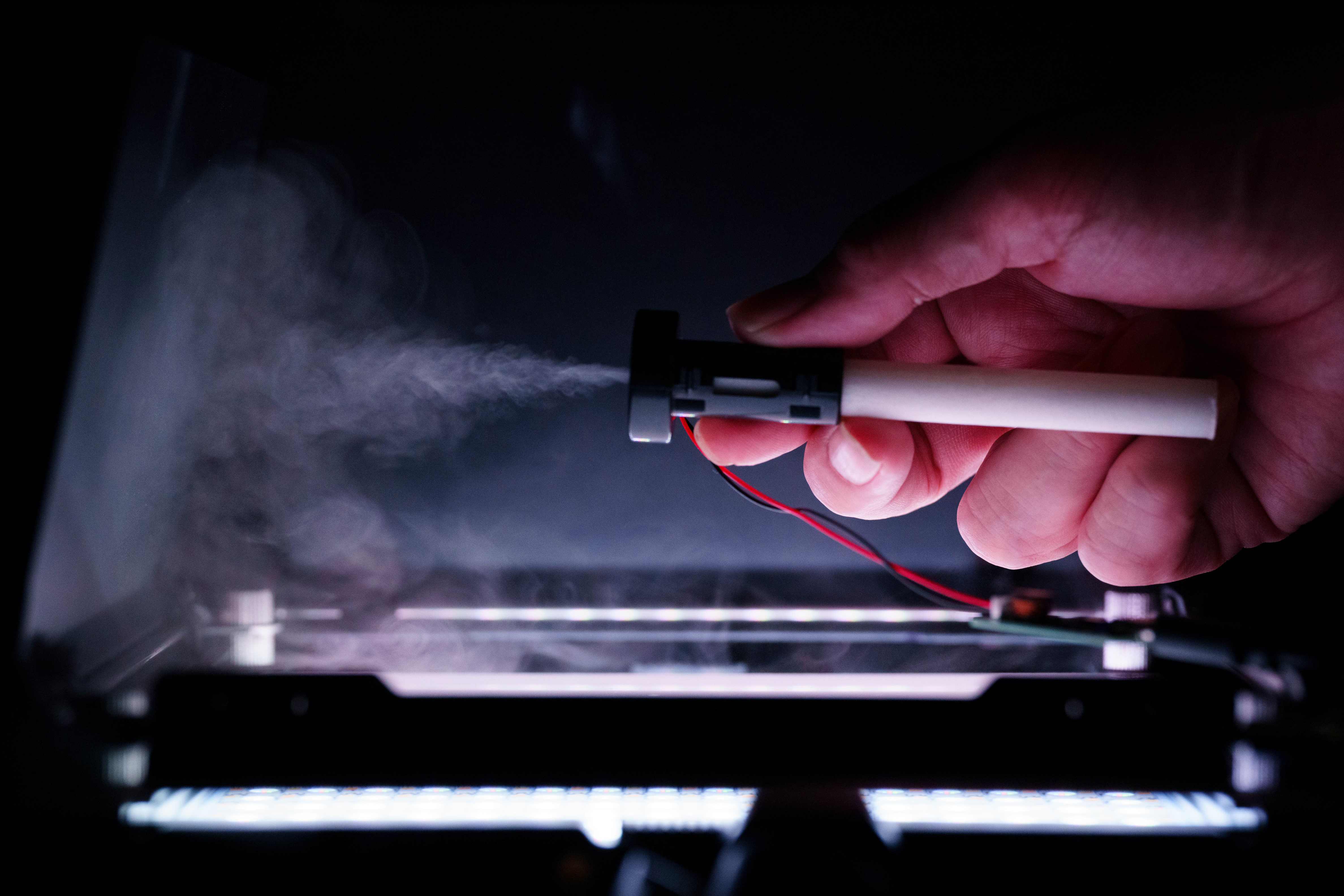

Mist can also be generated horizontally, allowing for handheld use.
Additionally, by placing the water absorption core into a cup of water, long-term water supply is possible.
*The ultrasonic transducer and water absorption core are consumable items. If they become degraded, please purchase replacements separately.
Caution!
When using, please connect to a standard 5V USB charger or mobile battery using the included USB cable.

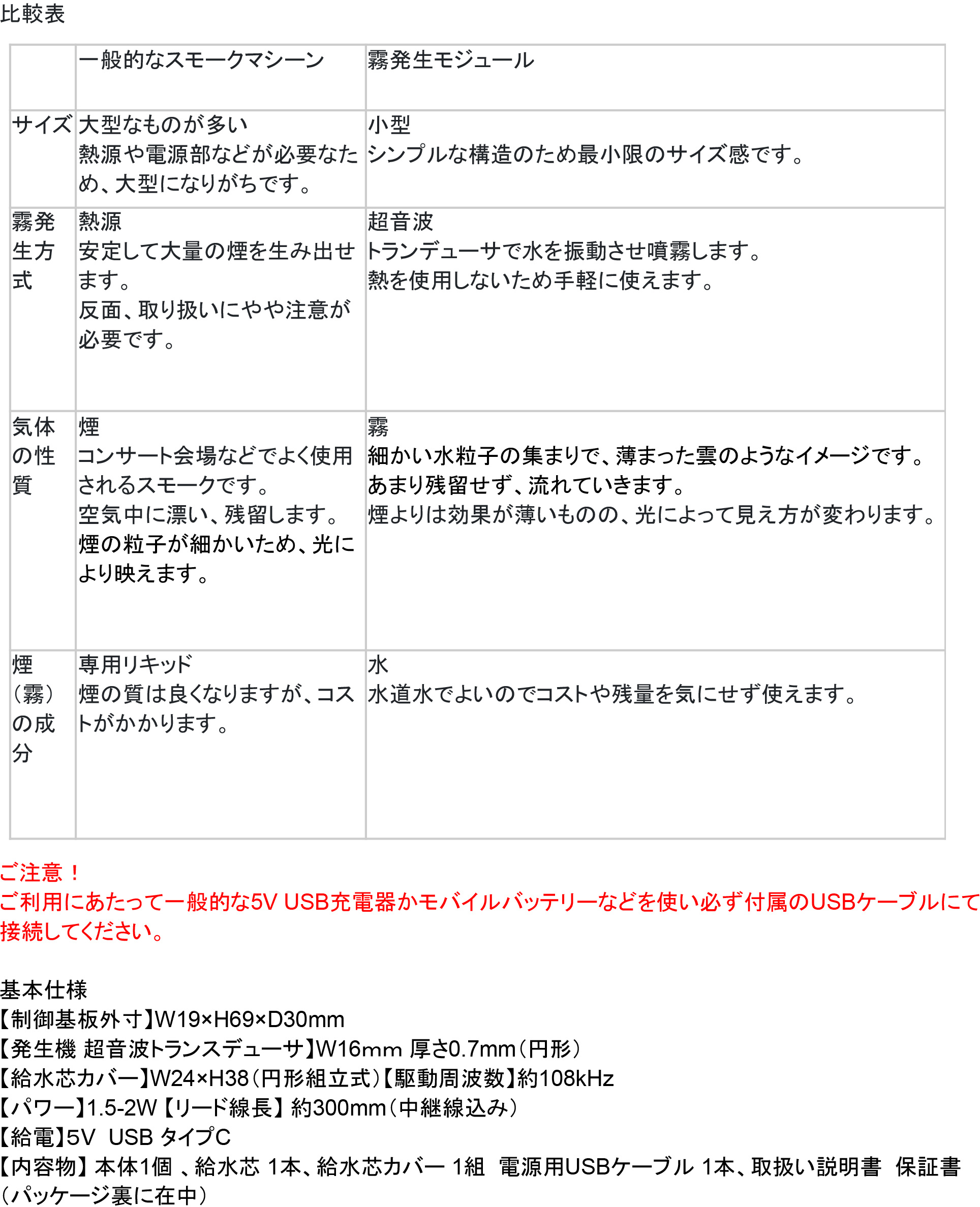

Basic Specifications
- Control Board Dimensions: W19 x H69 x D30mm
- Ultrasonic Transducer Dimensions: W16mm, Thickness 0.7mm (circular)
- Water Absorption Core Cover Dimensions: W24 x H38 (circular assembly)
- Operating Frequency: Approximately 108kHz
- Power: 1.5-2W
- Lead Wire Length: Approximately 300mm (including extension cable)
- Power Supply: 5V USB Type-C
- Contents: 1 main unit, 1 water absorption core, 1 set of water absorption core cover, 1 USB power cable, instruction manual, warranty (included on the back of the package)
